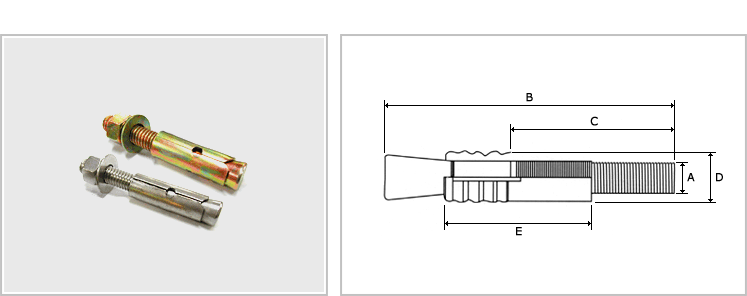

| 호칭경
(A) |
캡길이
(E) |
앙카길이
(B) |
적합드릴경
(D)
(mm) |
드릴깊이
(mm) |
| 1/4"
(M6) |
30 |
2"
(50mm) |
10 |
33 |
| 5/16"
(M8) |
35 |
2-1/2" (60mm) |
12 |
38 |
| 3/8"
(M10) |
40 |
3"
(70mm) |
14 |
44 |
| 4"
(100mm) |
| 5"
(125mm) |
| 6"
(150mm) |
| 8"
(200mm) |
| 10"
(250mm) |
| 12"
(300mm) |
| 1/2"
(M12) |
50 |
4"
(100mm) |
17 |
55 |
| 5"
(125mm) |
| 6"
(150mm) |
| 8"
(200mm) |
| 10"
(250mm) |
| 12"
(300mm) |
| 5/8"
(M16) |
65 |
5"
(125mm) |
22 |
65 |
| 6"
(150mm) |
| 8"
(200mm) |
| 3/4"
(M20) |
75 |
6"
(150mm) |
25 |
85 |
| 8" (200mm) |
| 10" (250mm) |
| 12" (300mm) |
|
|
